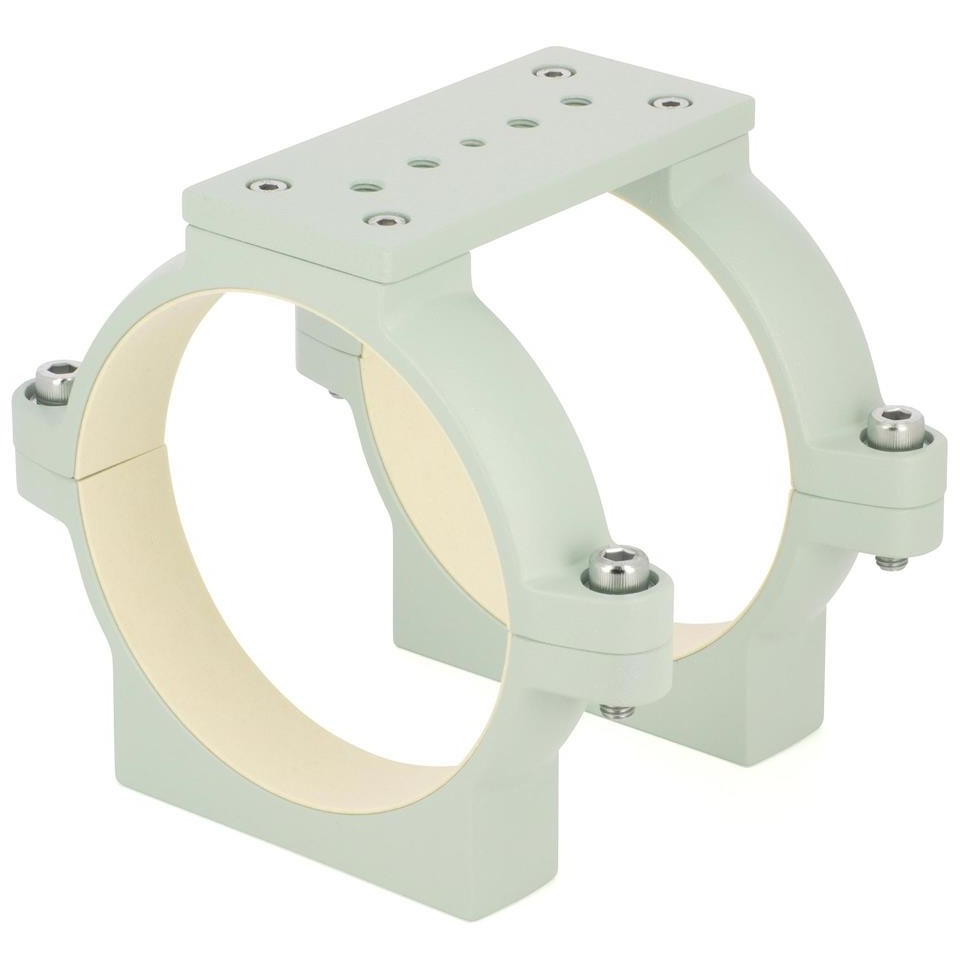

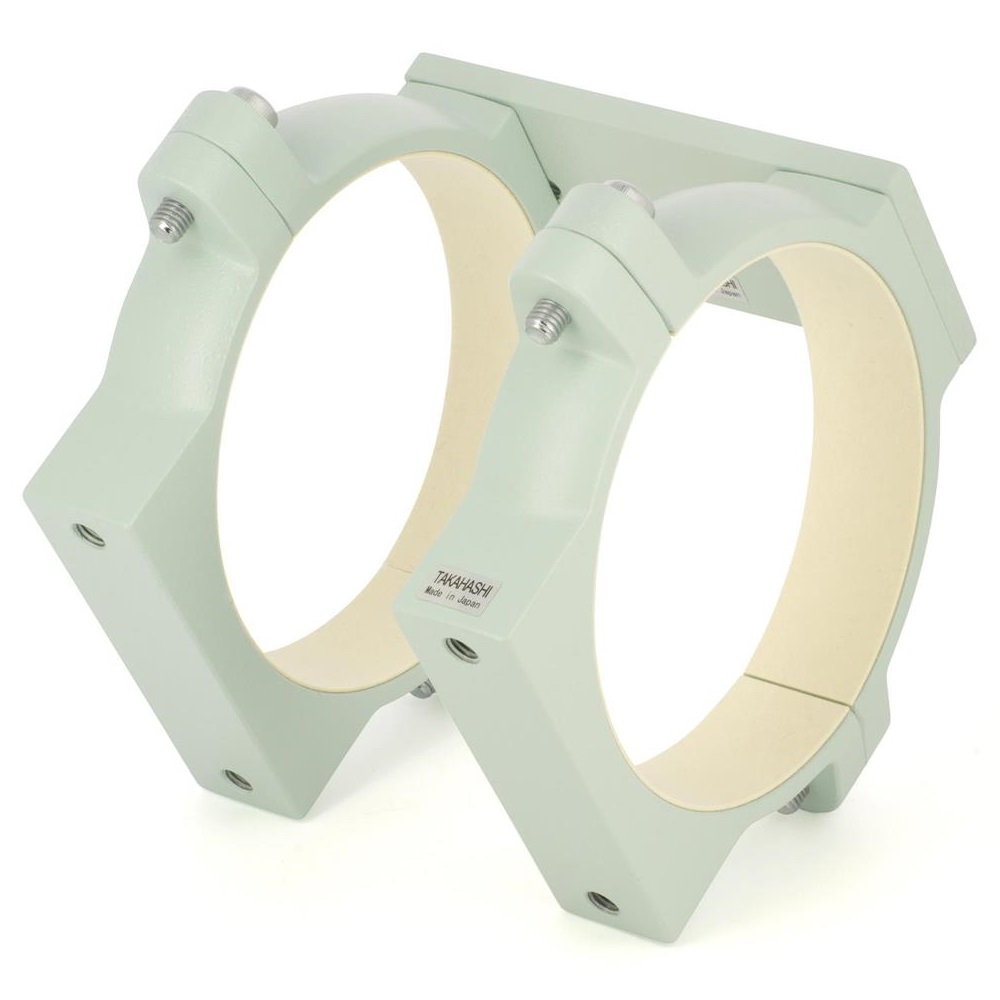

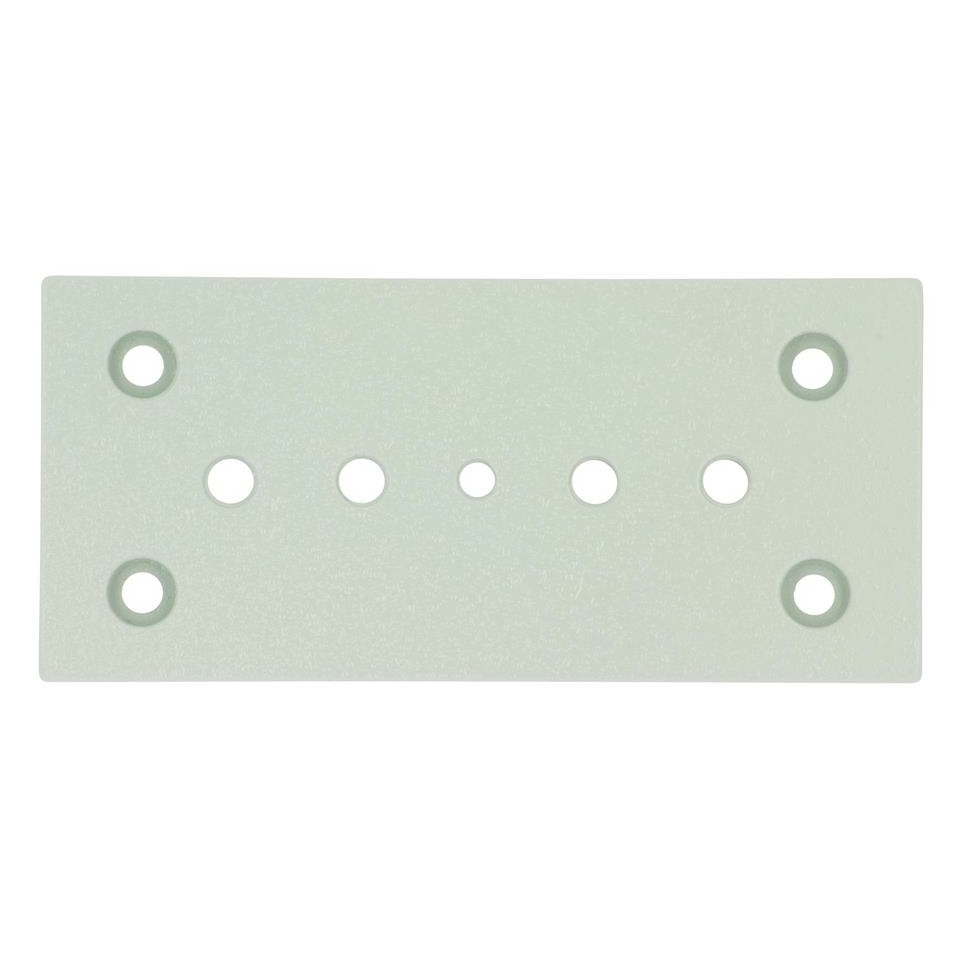

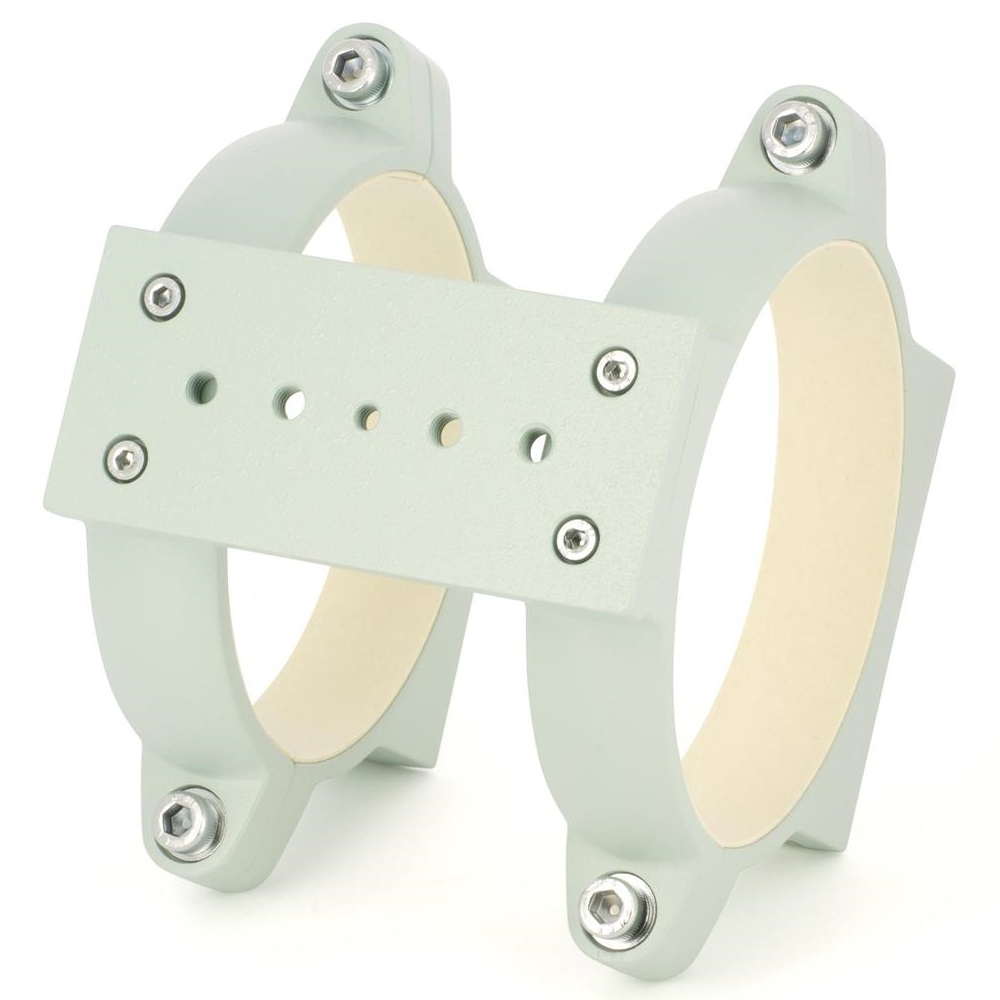

Für besten Halt des FSQ-106ED, mit Top Plate zur Montgage von zusätzlichem Gerät (4x M8 Gewinde, 1x 1/4 Zoll Fotogewinde).

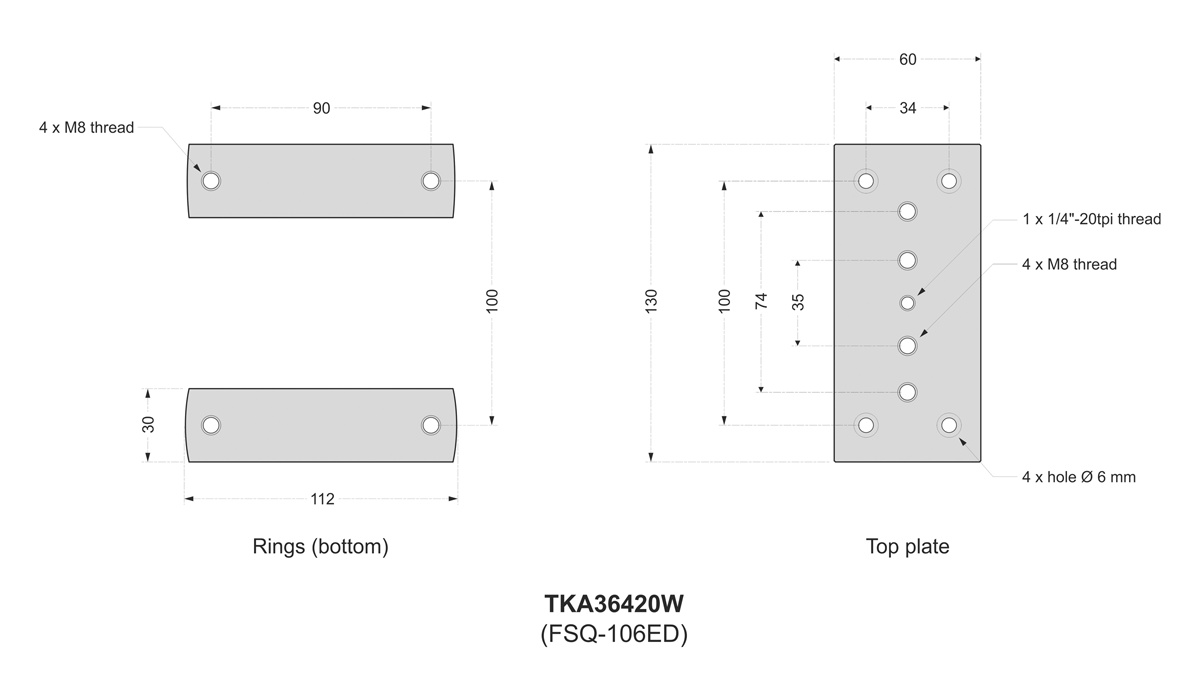

An der Basis der Schellen je 2x M8 Gewinde, Dimension 90mm Breite, und 100mm Abstand der Schellen (Mitte-Mitte).
Wenn man diese Schellen auf eine Takahashi Montierung befestigen will, so braucht man die Montageplatte TKA36421W.
Gewicht: 1,2kg
Passende Losmandy-Schiene zur Direkt-Montage: LosTak100
![]() |
FSQ106X4 | Takahashi FSQ-106EDX4, tube only Currently not available! |
ONLY SUPPORT | |
![]() |
TKA36421W | Bottom plate W for FSQ-106ED tube rings TKA36420W or Epsilon-130 | 265.00 EUR | |
![]() |
TMP02400 | Mounting Plate for Tube Rings with 130mm or 180mm Bridge | 137.00 EUR | |
![]() |
LosTak100 | Losmandy dovetail for Takahashi tube rings with 130mm bridge | 139.90 EUR | |
![]() |
tub125 | Tubusgyűrűpár 125mm átmérővel (pl. FSQ-106ED, TSA-120) available in the Lacerta-Set: TSA120-L , FSQ106X4-L |
ONLY SUPPORT | |
![]() |
FindFFTKup | Keresö Kuplung multi-adaptációs furatokkal | ONLY SUPPORT |
